Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed

Product Categories
Henan Zhicheng Valve Fittings Manufacturing Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

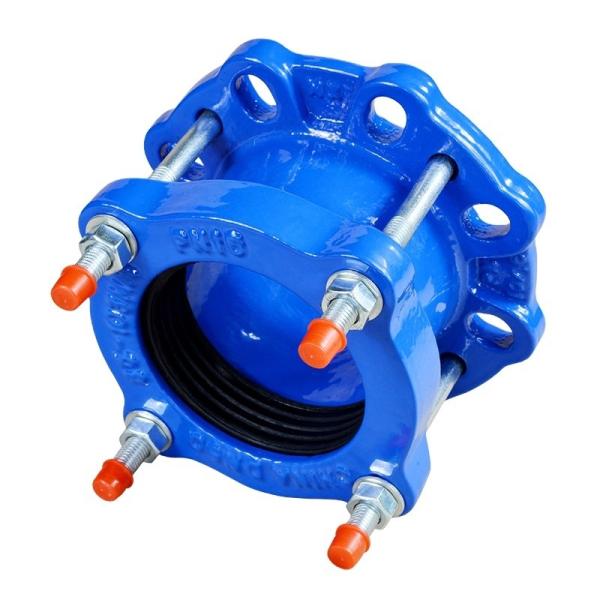

Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed

Place of Origin : Henan, China

Brand Name : ZHICHENG

Model Number : SSJB(AY)

Packaging Details : Wrapped in bubble wrap, placed in a cardboard box and finally packed in a wooden crate.

Supply Ability : 10000 Set/Sets per Month

Price : $35.60/sets 1-99 sets

Warranty : 1 YEAR

Customized support : ODM, OEM

Technics : Casting Forging

Connection : Flange

Shape : Equal

Head Code : round

Working pressure : From pn10 to pn16

Color : Blue

Medium : Water

Nominal size : DN40- DN600mm

Drawing : Offer

Product Certificate : ISO9001, WRAS

Material of body : Cast iron,carbon steel,stainless steel

Port : Qingdao port or negotiable

MOQ : 1

Contact Now

Flexible Flanged Compensating Joints for Pipes Equal Working Pressure Guaranteed

Product Description
The Flange Adapter is designed for use with pipelines as a wide tolerance system. It is suitable for most standard pipe materials and therefore significantly reduces the number of special flange adapters that need to be stocked for maintenance purposes. When connecting PE pipes, it is important that the pipe insert is fitted to the PE pipe.
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Specification
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Structure and material of dresser coupling
TIME
DESCRIPTION
MATERIAL
QUANTITY
1
END RING
GJS500-7
1
2
GASKET
EPDM
1
3
BOLT
GD 4.8
N
4
BODY
GJS500-7
1
5
PLASTIC CAP
PLASTIC
N
Main connecting dimension of carbon steel pipe flange adapter
DN
RANGE(MM)
L(MM)
D(MM)
BOLT
SIZE
QTY
50
59-72
75
165
M12*130
2
65
72-85
75
185
M12*130
2
80
88-103
76
185
M12*130
4
100
93-117
78
218
M12*130
4
125
125-140
78
250
M12*130
4
150
155-175
80
272
M12*130
4
200
218-235
85
335
M12*130
4
250
265-280
90
405
M12*130
6
300
315-332
90
460
M12*130
6
350
351-368
110
510
M16*180
8
400
400-429
110
580
M16*180
8
450
455-472
115
640
M16*180
10
500
500-532
120
690
M16*180
10
600
600-630
130
820
M16*180
10
Datas above are only for reference,please contact us for final confirmation!
Product installation steps
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Company Profile
Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality control system, standard
production process and standardized delivery inspection program to ensure that the delivered products meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange disassembly joints, flange adapters
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Why Choose Us
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Packing & Delivery
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Flexible Universal Flange Adapter Compensating For Pipes Equal Working Pressure Guaranteed
Packing: Inner plastic film packing, outer
standard export wooden case packing.

Shipping: Courier company transport, air freight and sea transport. It depends on your actual order details and quantity.
FAQ
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: What are your payment terms?
A: T/T (30% as desposit, the rest 70% will be paid before delivery), L/C at sight
Q: Can I visit your factory before the order?
A: Yes, welcome to our factory to check the quality
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned or according to consumer's requests
Q: Do you accept small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes, the material can be chose according to your requirement.
Q: And what is your shipment and delivery time?
A: By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
Q: And what's your packing?
A: carton cases inside, export wooden cases outside.
